Coda Bubble Example

Tactical Solar Panels

mouse over image to view the specs for the solar panels

Product Specifications

Electrical Characteristics *
Product Number	ETI0021-0038
Nominal System Voltage Rating	15.4 V
Nominal Rated Power (watts) at STC	5
Nominal Rated Current (amps)	0.3
Dimensions and Weight
Folded
Length, in (mm)	5.5 (140)
Width, in (mm)	4.5 (114)
Thickness, in (mm)	0.75 (19)
Deployed
Length, in (mm)	25.5 (648)
Width, in (mm)	11 (279)
Thickness, in (mm)	0.06 (1.5)
Weight
Weight, lb (kg)	0.38 (0.17)
Power to weight ratio: Watt/lb (watt/Kg)	13 (29)

Portable Power Packs

10 Watt - ETI Part # ETI0021-0039

Product Specifications

Electrical Characteristics *
Product Number	ETI0021-0039
Nominal System Voltage Rating	15.4 V
Nominal Rated Power (watts) at STC	10
Nominal Rated Current (amps)	0.3
Dimensions and Weight
Folded
Length, in (mm)	10.3 (261)
Width, in (mm)	3.5 (89)
Thickness, in (mm)	1.4 (35)
Deployed
Length, in (mm)	20.5 (521)
Width, in (mm)	23 (584)
Thickness, in (mm)	0.06 (1.5)
Weight
Weight, lb (kg)	0.56 (0.25)
Power to weight ratio: Watt/lb (watt/Kg)	18 (39)

20 Watt - ETI Part # ETI0021-0040

Product Specifications

Electrical Characteristics *
Product Number	ETI0021-0040
Nominal System Voltage Rating	15.4 V (24 V version avail.)
Nominal Rated Power (watts) at STC	20
Nominal Rated Current (amps)	1.2
Dimensions and Weight
Folded
Length, in (mm)	10.5 (267)
Width, in (mm)	6.5 (165)
Thickness, in (mm)	0.6 (15)
Deployed
Length, in (mm)	30 (762)
Width, in (mm)	30.5 (775)
Thickness, in (mm)	0.06 (1.5)
Weight
Weight, lb (kg)	0.9 (0.43)
Power to weight ratio: Watt/lb (watt/Kg)	21 (47)

30 Watt - ETI Part # ETI0021-0041

Product Specifications

Electrical Characteristics *
Product Number	ETI0021-0041
Nominal System Voltage Rating	15.4 V (24 V version avail.)
Nominal Rated Power (watts) at STC	30
Nominal Rated Current (amps)	1.8
Dimensions and Weight
Folded
Length, in (mm)	10.5 (267)
Width, in (mm)	9.3 (235)
Thickness, in (mm)	0.75 (19)
Deployed
Length, in (mm)	41.5 (1054)
Width, in (mm)	30.5 (775)
Thickness, in (mm)	0.06 (1.5)
Weight
Weight, lb (kg)	1.3 (0.6)
Power to weight ratio: Watt/lb (watt/Kg)	23 (51)

60 Watt - ETI Part # ETI0021-0042

Product Specifications

Electrical Characteristics *
Product Number	ETI0021-0042
Nominal System Voltage Rating	15.4 V (24 V version avail.)
Nominal Rated Power (watts) at STC	60
Nominal Rated Current (amps)	3.6
Dimensions and Weight
Folded
Length, in (mm)	10.3 (261)
Width, in (mm)	8.9 (225)
Thickness, in (mm)	2.8 (70)
Deployed
Length, in (mm)	60 (1521)
Width, in (mm)	42 (1064)
Thickness, in (mm)	0.06 (1.5)
Weight
Weight, lb (kg)	2.6 (1.2)
Power to weight ratio: Watt/lb (watt/Kg)	23 (50)

ETI's Tactical Solar Shelter System Configurations
ETI's Tactical Shelters keep you cool in extreme climates while providing Killowatts of power for your applications.

Other Solutions are no match for ETI's Flexible Roof Mounted Tactical Solar®
ETI's Tactical Solar vs Other Solar Solutions

Rigid Solar Panels

Various DC & AC output voltages are available.

Long Set Up Time (several hours)

Heavy: Glass housing can be easilly damaged

Fragile: Glass crystiline components can easilly crack

Large Footprint: Takes up lots of space

Non-Portable: Difficult to uninstall and move.

Flexible Tactical Solar Panels.

Various DC & AC output voltages are available.

Quick setup in under an hour.

Light: Flexible Panels on low weight substrate

Durable: panels function even with holes in them.

Space Saving: Roof mounting takes up less area

Portable: Panels can be folded up and moved at a moments notice.

Energy Saving: solar covering shelter fly insulates the shelter, thereby reducing power required for heating/cooling.

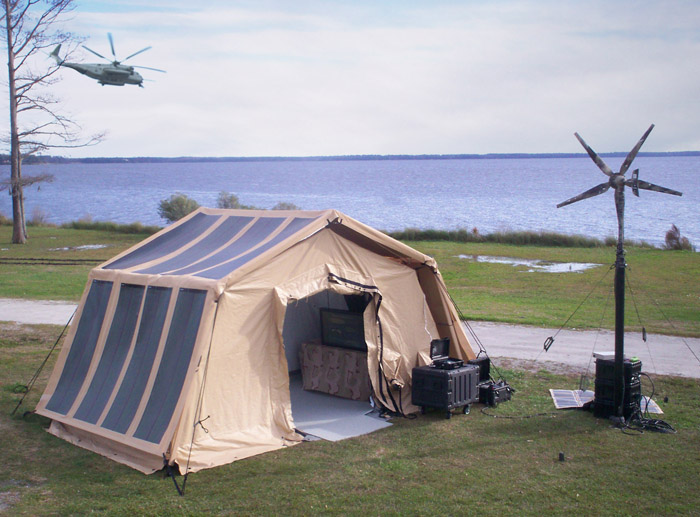

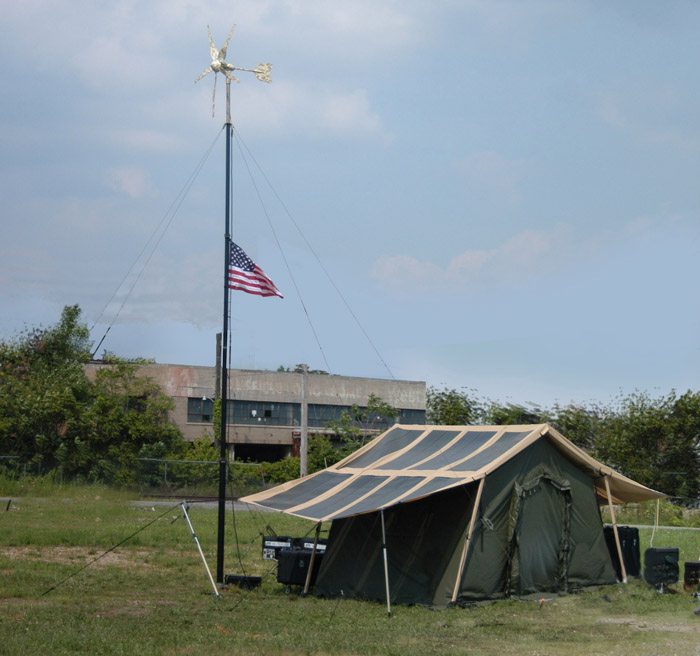

Tactical Shelter

Various DC & AC output voltages are available.

Units are integrated into self-contained enclosures providing easy deployment and equipment protection.
Quick setup in as little as 2-minutes.
Systems can also use DC from military or emergency vehicles as input and optionally AC from any AC source.

The new Solar Power Shelters offer up to 1440 watts of solar power for each 10' x 20' shelter section. This solar covering also serves to further insulate the shelter, thereby reducing power required for heating/cooling.

Tactical Solar®Panels

Energy Technologies, Inc. (ETI) offers Tactical Solar Panels to generate power for your mobile electric power and battery charging applications. Incorporating Solid State, Thin-Film, Solar Cells, these power packs provide an excellent choice for applications that require lightweight, flexible, durable, silent power.

SolarPanel Features

5 to 330 Watt output panel sets available
Parallel and series configurable for higher wattage or voltage
No electrical noise or interference
No audible noise or heat signature
Durable lightweight construction
Tested to Mil Std 810E
Folds into a compact package about the size of a textbook
Panels store inside Solar Briefcases
Corner grommets for tie downs

* Operating voltage and current at AM 1.5. Power performance may vary +/- 10% due to temperature variation, spectral variation.

** Available in tan, black or digicam patterns	Some products also available as a roll-up Solar Charger:

Tactical Solar Products

ETI now offers the most complete line of deployable solar power equipment available anywhere. Units can be used to charge batteries and/or to operate electrical or electronic equipment directly.

Developed for:

Warfighter overseas deployment
First Responders & other Emergency Services
Homeland Security

Tactical Solar products include: Fixed & flexible solar panels, Charge controllers, Battery modules, UPS systems
